Manhole Boxes / Access Chamber Units – Trench Shoring for Manholes & Pits

LITE guard Manhole Box / Access Chamber Unit Systems are lightweight shoring panels designed for use around manholes, pits and pump stations. They come in three sizes which can cater for different applications. All sizes of manhole units come are available in multiple widths.

  • For use in dig and place
  • Can be stacked
  • Allows faster manhole construction without the need for the worker to enter the excavation.
    As is required for installing in dig and push on installation or removal.

Want to know more about LITE guard Manhole Boxes / Access Chamber Units?

Get in touch with our team from more information or how to purchase.

LITE guard Manhole Boxes / Access Chamber Unit Specifications

Panel TypePanel Length mmPanel Height mmSafe Working Load (kPa)Panel Thickness mmUnder Strut ClearanceInternal Clearance Strut to Strut mmUnit weight Incl. 1000mm Struts
Unit2000200030565601800400kgs
Unit240024009090115022001000kgs
Unit300024006090115028001183kgs

LITE guard Manhole Boxes / Access Chamber Units Meet Global Standards

AS/NZ 4744.1 – 2000, BS EN 13331.1 & 2 – 2002 (British & European Standard), OSHA Sub Part P

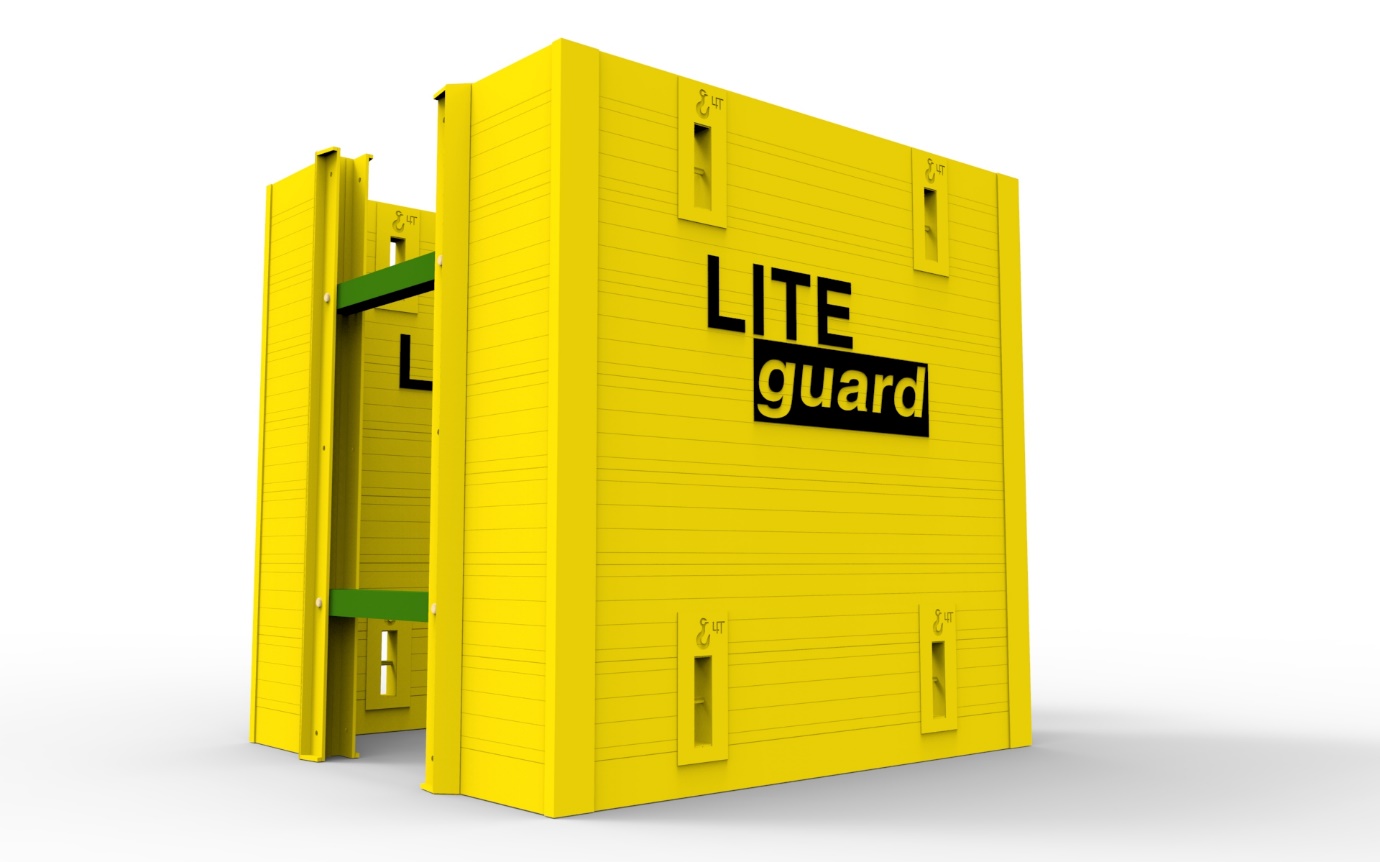

LITE guard Manhole Box / Access Chamber Unit Trench Shoring Box
